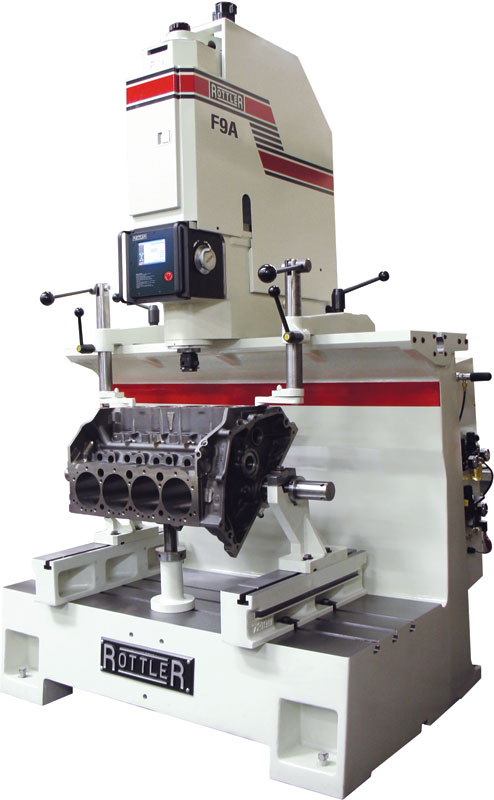

Rottler F9A

Boring Bar and Sleeving Machine




Machine Operations

  • Boring & Sleeving
  • Cylinder Boring
  • Multi Purpose CNC (Custom Parts)

  • Applicable Industries

  • Engine Building
  • Jobber Shop
  • Motorcycle Engine
  • Performance Racing
  • Remanufacturing
  • Small Engines
  • Vintage Engine Rebuilding

  • PDF Resources

    FA Series Brochure
    FA & FX Optional Tooling Catalog
    FA Optional Equipment Catalog

    The FA machines are the industry standard worldwide for boring bars. Designed for all automotive blocks up to big block V8's and small diesel blocks, the F9A will produce accurate bores for a lifetime. The F9A is ideal for the production shop where the odd sleeve must be fitted. The F9A boring bar is the fastest, most powerful boring machine available to the jobber shop. The simple setup and manual push button controls make this a very user-friendly and economical machine to operate.
    • Speed - All FA boring bars have the same high performance AC servo motor. Independent feed control allows you to change the feed rate from .001" (.025mm) to .012" (.3mm) per revolution.
    • Accuracy - The FA series boring bar uses a precision ground ball screw to control feed rate and cutter position. This allows the machines to repeat cutter position accuracy to .0002" (.005mm).
    • Strength - The Rottler proven spindle and bearing design gives you a rigid machine capable of making heavy sleeve cuts for a lifetime. The F9A spindle has been reduced to allow the machining of compact engines such as motorcycles, marine blocks and others.
    • Flexibility - With variable feed rates you are able to maximize the performance of the machine. Increase spindle feed rates for simple oversize bores. Decrease feed rates for sleeve cuts or counter bores. The F9A machines can bore from 1.5" (38mm) to 5" (127mm). Special carbide tools are available for counterboring, chamfer cutting, offset boring, and O-ringing.
    • Reliability - The F Series machines use a high-speed, cogged belt drive system. This and the use of two independent motors to run the spindle speed and feed, entirely eliminates the gear box.
    • Cost Savings - The high speed Rottler FA boring bar series machine can bore a block in half the time that other boring machines require. New insert technology is producing long lasting, inexpensive inserts which are capable of handling these high speed and feed rates, with the same cost per insert as previous styles. Inserts do not require sharpening and the low cost of these tools makes them the ultimate choice for boring cylinders.
    • Block Clamp Arm - set of 2 (Part# 502-1-30)
    • CNC Touch Screen Control, Windows Operating System with Intel Processor
    • Internet connection to the boring bar machine computer must be provided for training support and service.
    • Automatic Vertical Cycles for Cylinder Boring, Resleeving and Counterboring
    • Programming and Machine Operation thru extra bright touch screen.
    • Electronic Handwheel for manual operation in .001" (.01mm) or .005" (.125mm) increments per Handwheel Detent
    • Precision Digital Readout, .0001" (.002mm) Resolution
    • Spindle Travel by Precision Ball Screw & AC Servo Motor - Infinitely Variable
    • Vertical Movement - Z Axis - Up and Down - 13" (330mm)
    • Spindle Rotation by AC Servo Motor - Infinitely Variable to 1200 RPM
    • Machine Workhead Floats on Air Cushion for Precision Centering controlled from the Touch Screen - Total Travel - Left/Right Direction 40" 1000mm
    • Heavy Duty Spindle 2.68" (68mm) Diameter with Inner Precision Angular Contact Bearings supported in Adjustable Outer Bearings
    • Quick Change Cutterhead System
    The F9A is programmed and operated through CNC Touch Screen Control on a Windows Operating System with Intel Processor.  Instant Internet Support is available direct from machine.

    The electronic handwheel provides Manual Operation with two modes. In coarse mode, each "click" of the handwheel will move the machine exactly .001" (.01mm) and in fine mode, each click will move the machine exactly .0001" (.002mm). The pulse hand wheel allows you to feed .0001 per click or .001 per click. The LED reads the actual vertical position in .0001.

    For more information: See the FA Boring Bar Brochure or give us a call at +1 (253) 872-7050
    F9A Machine Specifications American Metric
    ControlAutomatic CNC
    Touch Screen4.5"114mm
    Machine Weight3500 lbs1591 kg
    Machine Height80"2032mm
    Table - Size50" x 21"1270 x 530mm
    Travel - Spindle Nose to Table26"670mm
    Spindle - Rotation Speed100 to 1200 RPM
    Spindle - Motor3.3 HP 2.5kW HP
    Bore Capacity (with Optional Cutterheads)1.5" - 5"38 - 127mm
    Feed per RevolutionProgrammable Feed Rates .001" - .012"Programmable Feed Rates .025 - .300mm
    Spindle Travel (Vertical)13"330mm
    Workhead Travel (Horizontal)40"1000mm
    Dimensions - Machine45D x 51W x 80" H 1143D x 1956W x 2032mm H
    Dimensions - Floor Space Requirements46D x 54W"1170D x 1372Wmm
    Dimensions - Shipping67D x 77W x 88" H 1702D x 1956W x 2235mm H
    Electrical Requirements208-240V, 30A, 50/60Hz, 1Ph
    Air Requirements1 cfm @ 90 psi28 l/min @ 6 bar
    Paint Color CodeRAL9002 (Grey White)
